Isolated Buck Transformer for industrial application ZD2020-AE
Isolated Buck Transformer for industrial application ZD2020-AE
Features:
- Designed for an input voltage range of 5 to 24 V with dual isolated outputs
- Suitable for isolated IGBT/SiC gate driver, On-board charger for HEV/EV, and industrial application.
- Functional insulation only. Basic or reinforced versions can be made available per request.
- AEC-Q200 qualified
Electrical Parameters @ 25° C
| Part number |
Power
(W)
|
Inductance at 0 A ±10% (µH)
|
DCR max (Ohms)
pri
|
DCR max (Ohms)
aux
|
DCR max (Ohms)
sec
|
Leakage
inductance max (µH)
|
Turns ratio4 pri : sec1 : sec2
|
Isolation
(Vrms)
|
Isat
(A)
|
Output |
| ZD2020-AED |
5 |
20 |
0.138 |
0.426 |
0.175 |
0.725 |
1 : 1.56 : 0.44 |
1500 |
1.9 |
20 V, 0.20 A
-5 V, 0.20 A |
Shape and Dimensions:

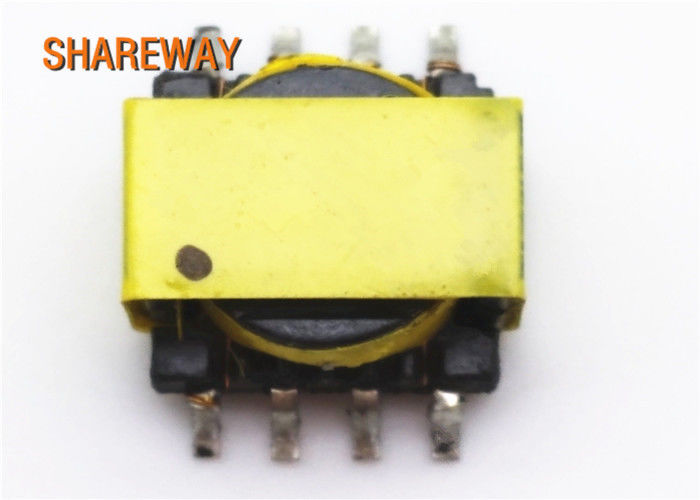

Product picture:
Isolated Buck Transformer for industrial application ZD2020-AE
